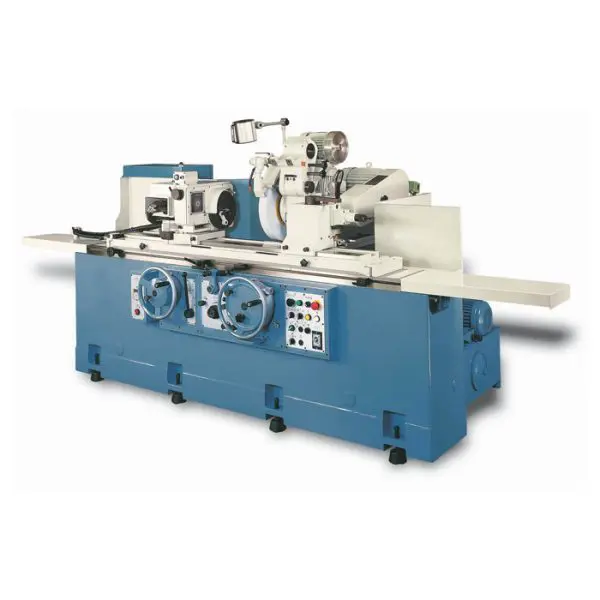

Cylindrical Grinder China Supplier

Cylindrical grinder China supplier, we’re supplier in China mainland.

This machine is used for machining the outer surface of the workpiece with cylindrical, conical or other shape and the end surface of the shoulder.

It is the most widely used and can process various cylindrical conical outer surfaces and shoulder end grinding machines.

Details About Cylindrical Grinder China Supplier

Technical Parameters:

Model	Model	M14(3)32-1000
Max swing dia.	mm	360
Top notch distance	mm	1050
Center height	mm	180
Max grinding dia.	mm	320
Grinding hole dia. range	mm	30-100
Grinding hole dia. depth	mm	125
Max top notch weight	Kg	150
Grinding wheel size		50050203
Grinding wheel line speed	m/Min	38-45
Grinding wheel frame full travel	mm	250
Movement by handwheel per rotation	mm	2(rough), 0.5 (fine)
Movement by handwheel per grid	mm	0.01(rough), 0.0025 (fine)
Worktable feed	m/Min	0.1-4
Worktable swing angle	°	-3~+7
Worktable travel	mm	1050
Headstock spindle taper		4#/5#
Headstock rotation speed	r/Min	20/50/75/110/150/220
Headstock rotation angle	°	-30~90
Tailstock sleeve taper		4#/5#
Tailstock top notch travel	mm	40
Grinding wheel motor power	kw	5.5
Headstock motor power	kw	1.5
Oil pump motor power	kw	0.75
Cooling pump motor power	kw	0.2
Total power	kw	9
Roundness	mm	0.002
Surface roughness	Ra	0.32
Weight	Kg	3800
Dimension (LWH)	mm	330017701700

Model	Model	M14(3)32-750
Max swing dia.	mm	360
Top notch distance	mm	780
Center height	mm	180
Max grinding dia.	mm	320
Grinding hole dia. range	mm	30-100
Grinding hole dia. depth	mm	125
Max top notch weight	Kg	150
Grinding wheel size		50050203
Grinding wheel line speed	m/Min	38-45
Grinding wheel frame full travel	mm	250
Movement by handwheel per rotation	mm	2(rough), 0.5 (fine)
Movement by handwheel per grid	mm	0.01(rough), 0.0025 (fine)
Worktable feed	m/Min	0.1-4
Worktable swing angle	°	-3~+7
Worktable travel	mm	780
Headstock spindle taper		4#/5#
Headstock rotation speed	r/Min	20/50/75/110/150/220
Headstock rotation angle	°	-30~90
Tailstock sleeve taper		4#/5#
Tailstock top notch travel	mm	40
Grinding wheel motor power	kw	5.5
Headstock motor power	kw	1.5
Oil pump motor power	kw	0.75
Cooling pump motor power	kw	0.2
Total power	kw	9
Roundness	mm	0.002
Surface roughness	Ra	0.32
Weight	Kg	3300
Dimension (LWH)	mm	280017701700

As our company continuously developing and improving our products, the specification parameters might change without any notice.
